How do I fix WRN boot failure?

Applies to: WRN-1632 / 1632s / 816s / 810s and GNOME display boot up screen

Issue Summary

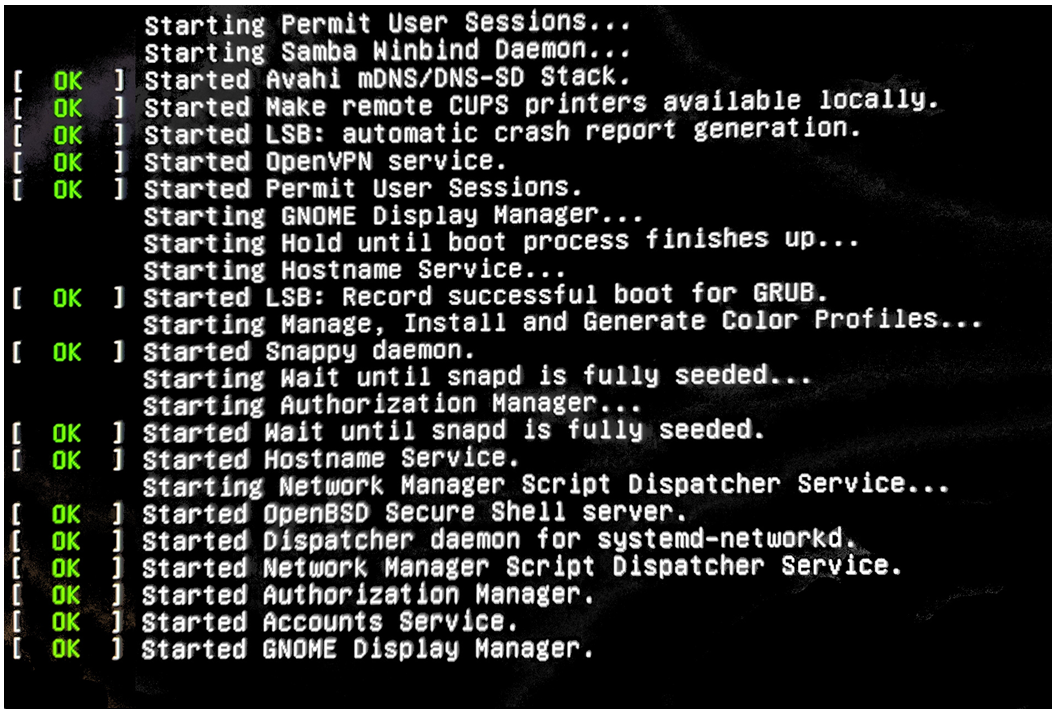

Sometimes, the WRN fails to properly boot up, and does not progress past the city logo, and the screen goes black, not proceeding further.

Resolution

To fix a WRN boot failure:

1. Copy fix_wrn_failboot_log_cs_250314.sh file that is attached to this article to a USB.


2. Extract the files so that they are located in the root directory of the USB.


3. Connect a keyboard to the NVR and click Alt + F2.

   The Shell Log In screen displays.




4. Enter the Ubuntu user ID (e.g., wave) and password.


5. Connect the USB containing the script to the NVR.


6. Enter the command


   udisksctl status


7. Identify the connected USB devices as indicated by the orange box.




8. Check the DEVICE entry for the connected USB (e.g., sdb).


9. Enter the device name after /dev/. The device name (the number (1)) after sdb is the partition.



   udisksctl mount -b /dev/sdb1


   If a password prompt appears, enter the Ubuntu password.




10. Obtain the information of the mounted USB (e.g., /media/wave/A892 07D6).


11. Execute the script located on that USB.



    sudo /bin/bash /media/wave/A892-07D6/fix_wrn_failboot_log_cs_250314.sh




    If success to remove wrn bug is displayed, it means the process has completed successfully.


12. Enter the reboot command to restart the system.
