Learning CenterApplies to Models: PNM-C32083RVQ and PNM-C16083RVQ
Issue Summary
This article addresses a limitation of the PNM-C32083RVQ and PNM-C16083RVQ cameras, where dome distortion (blurring) occurs when the camera is tilted beyond 65 degrees due to a dome curvature.

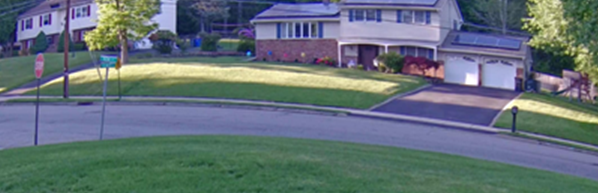

For instance, when the lens is fully zoomed out and the tilt angle exceeds the 65° mark, blurring may be observed—such as at the top of a house in the following image.
Resolution

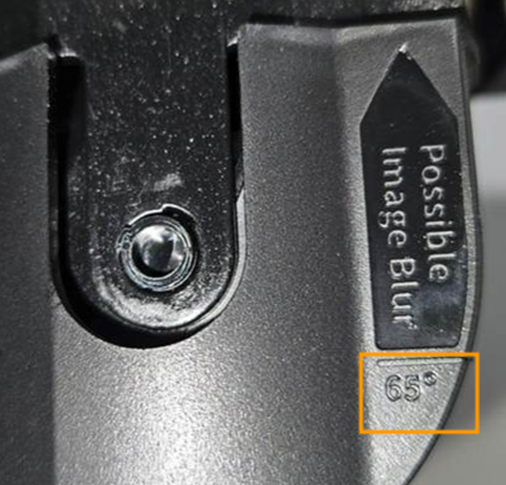

To avoid distortion and ensure optimal image quality, ensure that the camera tilt remains at or below the 65° threshold marking (as shown in the following image). This alignment minimizes dome-induced blurring and maintains image clarity.

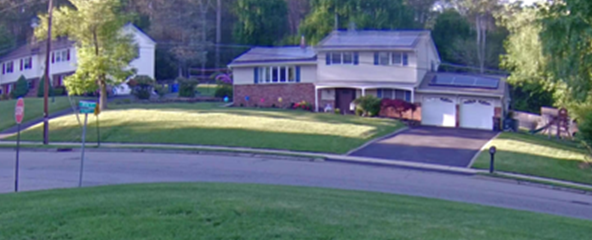

The following is a sample picture after adjusting the tilt below the 65° angle.
